Casement windows
Casement windows offer superior ventilation, excellent energy efficiency, and unobstructed views due to their hinged design. They provide a tight seal when closed, enhancing security and weather resistance. With easy operation and versatile styling options, casement windows are an ideal choice for any modern home or commercial space.
Product specifications
color options
1.
We can customize the product to your desired size through structural calculations and technical references.
2.
size options
3.

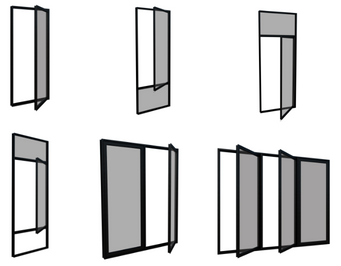

configurations
Basic Product Performance
-
Structural (Wind Load)
Up to 500 Pa
Deflection Max < L/125
-
Water Tightness
Isobaric system adaptable & water tight from outside within 75 Pa
-
Opening Force
Smooth opening mechanism
-
Air Infiltration
Dust-free and air tight system Grade A-4 (JIS)
-
Impact Resistance
30KG sandbag and 170mm drop height
-
Open-Close Test
30.000-cycle test
Product Features
Sleek profile with a 45mm sightline/interlock that allows our windows to offer 14% more glass area compared to other market options.
1.
45MM Sightline
Maximize your view with hidden top and bottom stiles within the frame, providing a seamless look for your windows.
2.
3.
hidden stiles
quality seals & gaskets
Stay cool and comfortable indoors with our superior insulation and weatherproofing.
Rollers feature stainless steel construction and are equipped with two wheels each, offering a capacity of 80 kg per sash.
4.
5.
heavy duty rollers
sealer pad
A sealer pad is used for metal joints, and the entire installation process is carried out at the factory.
6.
anti-lift mechanism
The Anti-Lift device is a standard protection for both the inner and outer parts to prevent window sashes from falling out of position .
7.
crescent or hook locks
Our products are available in both crescent or hook locks.
